By Carnot Theorem, the efficiency of Carnot cycle is$$\eta=1-\frac{T_C}{T_H}$$

where $T_C$,$T_H$ are the absolute temperature of the cold reservoir and hot reservoir respectively. Since $T_C > 0$, that means $\eta < 1$, so it concludes the Kelvin statement: "no process is possible in which the sole result is the absorption of heat from a reservoir and its complete conversion into work"

However, I think in that period they don't know the negative temperature, if we let $T_C=300K$ and $T_H=-300K$, it is easy to get $\eta=2$. That seems a counterexample of the second law of thermodynamics.

Manishearth
  • 18,936
Popopo
  • 483
  • Thank you Kalitvianski, but according to the definition of negative temperature, -300K is hotter than 300K, so I should let $T_H=-300K$ and $T_C=300K$. – Popopo Sep 27 '12 at 14:20

2 Answers2

7

Short answer: You cannot construct a reversible ($\delta S_{cycle}=0$) cycle when $T_H<0,T_C>0$. So the expression for the efficiency doesn't apply.

For the long answer we have to go through the derivation of the eficiency of the Carnot cycle. As usual, one have to pay a lot of attention to signs. We have energy changes in heater and cooler related to their entropy changes: $$\delta E_H=T_H\delta S_H,\quad \delta E_C=T_C\delta S_C$$ The heater looses energy, while the cooler receives it: $$\delta E_H < 0,\quad \delta E_C >0$$ So the work done by a working body that transfers energy from heater to cooler is: $$\delta A = -\delta E_H - \delta E_C > 0$$ The efficiency of a cycle is a relation of the work done ($\delta A>0$) to energy lost by the heater ($-\delta E_H>0$). $$\eta = \frac{\delta A}{-\delta E_H} = 1 + \frac{\delta E_C}{\delta E_H}=1 + \frac{T_C}{T_H}\frac{\delta S_C}{\delta S_H}$$

  • In "ordinary" case: $T_H>0, T_C>0$ we, consequently, have: $$ \delta S_H<0,\quad \delta S_C>0$$ And we provide an example of an invertible cycle (the Carnot cycle), which, therefore, have to obey: $$\delta S_{cycle} = \delta S_H+\delta S_C = 0 \quad \Rightarrow \quad \frac{\delta S_C}{\delta S_H} = -1$$ Which leads to the usual formula.

  • If the heater have negative temperature: $T_H<0, T_C>0$ we will have: $$ \delta S_H > 0,\quad \delta S_C>0$$ So there is no way you can create a cycle with $\delta S_{cycle}=0$. The only thing you can say is that: $$\frac{\delta S_C}{\delta S_H}>0 \quad \Rightarrow \quad \frac{T_C}{T_H}\frac{\delta S_C}{\delta S_H}<0 \quad \Rightarrow \quad \eta<1$$

Kostya
  • 19,992
  • It's quite impressive. But I still have a doubt at $\delta S_H$. In my opinion, since $T_H<0K$ does not mean $T_H$ is really under $0K$, but higher than $+\infty K$, so I think $\delta E_H$ is not just $T_H\delta S_H$, but should be $(\int_{0K}^{+\infty K}dT_H+\int_{-\infty K}^{T_H}dT_H)\delta S_H$ instead, so $\delta E_H<0$ will also implies $\delta S_H<0$... – Popopo Sep 28 '12 at 14:35
  • 2
    @Popopo $\delta E=T\delta S$. By definition of temperature. Including negative temperatures. – Kostya Sep 28 '12 at 14:42
  • Ok, I see, you are right. Especially for the noninteracting two–level particles system, when $T \in (-\infty K, -0K)$, then when $\delta E<0$, $\delta S$ will $>0$; by the way, $\delta T$ will $<0$ at the same time. (but if $T$ is near $-0K$, it will drop slightly compared with $S$ will increase dramatically) – Popopo Sep 28 '12 at 14:58
3

To solve this, we can simply go through the derivation of the Carnot efficiency, taking account of the possibility that $T_H$ might be negative. For some reason I can never think about heat engines without drawing a diagram. Here's a diagram of how a normal heat engine works, using reservoirs with positive temperatures:

heat engine

Fig. 1: A normal heat engine.

The engine takes an amount of heat $Q_\text{in}$ from a reservoir at temperature $T_H$, and outputs an amount of work $W$, as well as rejecting an amount of heat $Q_\text{out}$ into a reservoir at temperature $T_C$.

The first law says that $Q_\text{in} = W + Q_\text{out}$. The second law says that the total amount of entropy must increase. The entropy of the hot reservoir drops by $\frac{1}{T_H}Q_\text{in}$ and the entropy of the cold reservoir increases by $\frac{1}{T_C}Q_\text{out}$. (The work $W$ doesn't affect the total entropy. Work is energy without any entropy).

So the total entropy change is $\frac{1}{T_C}Q_\text{out} - \frac{1}{T_H}Q_\text{in}$, or $\frac{1}{T_C}(Q_\text{in}-W) - \frac{1}{T_H}Q_\text{in}$. The efficiency is maximised when this is set to zero, which leads to the Carnot efficiency

$W_\text{max} = \left( 1- \frac{T_C}{T_H}\right) Q_\text{in}.$

Now let's imagine that $T_H$ is negative, and see how this picture changes.

The first thing to note is that now, when we remove heat from the hot reservoir its entropy still changes by $-\frac{1}{T_H}Q_\text{in}$. But this is now a positive change, because of the negative sign of $T_H$. You can think of $\frac{1}{T} = \frac{\partial S}{\partial U}$ as the amount by which a system's entropy changes when a small amount of heat is added. Energy stored in a negative-temperature reservoir "wants" to become heat, in the sense that removing heat increases its entropy rather than decreasing it.

Now, we can still go through exactly the same reasoning as before, and we still get

$W_\text{max} = \left( 1- \frac{T_C}{T_H}\right) Q_\text{in},$

and as you point out, this will be greater than 1. But note that in this case, $Q_\text{out} = Q_\text{in}-W_\text{out} < 0$. In your example where $\eta=2$, we have $Q_\text{out} = -Q_\text{in}$.

In Kostya's answer it is assumed that $Q_\text{out}$ must be positive, which is why he or she concludes that an engine with this efficiency can't exist. But I want to take a different approach by taking it at face value: the most efficient engine in this situation is one that actually takes heat out of the cold reservoir:

enter image description here

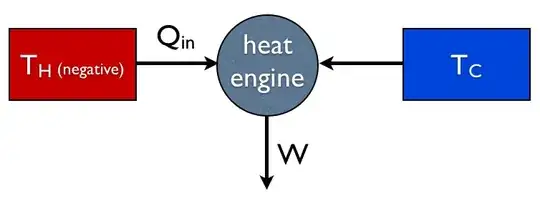

Fig. 2: A super-efficient heat engine, operating with a negative-temperature reservoir. Note that it takes heat out of both reservoirs.

Now we can make a certain amount of sense of the efficiency being greater than one. If $\eta>1$ it means that $W$ is greater than $Q_\text{in}$. But that's ok because in this situation some of the energy is coming from the cold reservoir. There's no problem with the second law, because we derived this by explicitly setting the entropy increase to 0.

I want to go back and make something clear that I hinted at earlier: you can take heat out of a negative-temperature reservoir and turn it directly into work, contrary to the Kelvin statement. That is, this engine is possible:

enter image description here

Fig. 3: A heat engine that converts negative-temperature heat directly into work.

But this does not contradict the second law. The above engine is not maximally efficient and produces an amount $-\frac{1}{T}Q$ of entropy, which again is positive because $T$ is negative.

You can't use it to build a perpetual motion machine, because the temperature of the negative temperature reservoir will decrease as heat is removed from it, until its temperature reaches minus infinity (which it will do in finite time), at which point it will switch to being positive and continue to decrease. This probably sounds pretty counterintuitive, so see the section on it below.

So the upshot of all this is that yes, it's possible for $\eta$ to be greater than 1 if $T_H<0$, but this isn't a counterexample to the second law and doesn't allow the construction of a perpetuum mobile. The Kelvin statement was written before knowledge of negative temperatures, as you say, and to make it true for such systems it would have to be modified to "no process is possible in which the sole result is the absorption of heat from a reservoir with positive temperature and its complete conversion into work."

Why does the temperature decrease to $-\infty$ and then become positive?

In a previous version of this answer I said that you can't create a perpetuum mobile because you need work to create a negative temperature reservoir. This is kind of true, but I think the below is a better argument.

We start by noting that $$\frac{1}{T} = \frac{\partial S}{\partial U},$$ where $U$ is the internal energy of a system and $S$ is its entropy. For most systems the curve $S(U)$ looks something like this:

enter image description here

Fig. 4: The $S(U)$ curve for a typical object with a finite heat capacity.

You can see that as you remove heat from the system (decreasing $U$), the slope $1/T$ increases (i.e. $T$ decreases) until at some point with finite $U$ (the ground state energy), the entropy becomes zero and the slope becomes infinite (or $T$ becomes zero). It's a basic result from statistical mechanics that the curve $S(U)$ must be concave, meaning that $1/T$ must always be non-increasing with increasing $U$. Typically, $S$ and $U$ are both unbounded.

However, for some systems (those where you can have a population inversion) can only hold a finite amount of energy, and for those systems the curve looks more like this:

enter image description here

Fig. 4: The $S(U)$ curve for a system that can have a negative temperature.

You can see that these systems can have negative temperatures, meaning that the internal energy $U$ is to the right of the peak in $S$. As you remove heat from such a system, $1/T$ increases until it passes through zero and becomes positive again, which corresponds to $T$ decreasing $-\infty$, then swtiching to $+\infty$ and continuing to decrease.

So as you remove energy from a negative-temperature reservoir you're inevitably moving it closer to becoming a normal positive-temperature reservoir. This is the fundamental reason why you can't build a perpetual motion machine using negative temperature reservoirs: eventually the constant-temperature idealisation has to break down, and your negative-temperature reservoir will become a postive-temperature one.

Conversely, in order to create the negative-temperature reservoir in the first place, you'd have to put energy into it. A system with a humped $S(U)$ curve as shown in Fig. 4 will typically start out at the same (positive) temperature as its surroundings, meaning that its internal energy $U$ will be to the left of the peak in the $S$ curve. To make the temperature negative you would have to put energy into it using a heat pump (similar to Fig. 2 but with all the arrows pointing in opposite directions). Essentially, you have to heat it up so much that its temperature becomes infinite, and then negative. So while it might seem quite miraculous that negative-temperature heat can be converted 100% into work without generating any heat, you have to bear in mind that negative temperature systems are something very special that don't (as far as I know) exist in nature, and you can't create one without using up at least as much work as you could extract from it using a heat engine.

Shouldn't heat flow from the negative-temperature reservoir $H$ into the postive-temperature one $C$?

If we were not using a heat engine to extract work then yes, it would. As you can hopefully see quite clearly from Fig. 5 above, negative temperatures are hotter than positive ones. But the point is that we're not just considering a spontaneous flow of heat, we're considering the most efficient way to extract work from the reservoirs, using a hypothetical machine.

It might help to look again at Fig. 1, showing a normal heat engine. Here we have heat flowing out of a hot reservoir, and into a cold one. But the heat going into the cold reservoir is less than the heat coming out of the hot one, because some of it gets converted to work. If we increase $T_H$ while keeping $Q_\text{in}$ constant then the engine can operate more efficiently, so $Q_\text{out}$ will decrease. If we make $T_H$ infinite (i.e. $1/T_H=0$, so the hot reservoir is right at the peak of the $S(U)$ curve above) then $Q_\text{out}$ becomes zero, because the maximally efficient heat engine has efficiency 1 and can convert heat at $T_\infty$ to work without producing any heat. (In a sense, work is heat with infinite temperature.)

If we increase the energy of the hot reservoir even further, so that its temperature becomes negative (passing the peak on the $S(U)$ curve), the maximum possible efficiency becomes greater than 1, and $Q_\text{out}$ becomes negative. Note that in this case the heat engine is removing heat from both reservoirs.

N. Virgo
  • 33,913
  • I'd like an explanation for the downvote please. If you (downvoter) think there is an error, please try to point out where it is. – N. Virgo Sep 28 '12 at 19:06
  • First of all -- this is not my downvote. But I still think that your argument is wrong. 1. The first answer that came to my mind was actually the same: "you have to use work to create a negative-temperature reservoir". But then I realized that this must equally apply to non-zero positive temperatures. 2. I was also thinking that maybe the engine will take energy from C reservoir. But then I realized that a) one just must switch names for H and C b) that is anyway wrong since heat actually flows from negative temperatures to positive temperatures. – Kostya Sep 28 '12 at 21:41
  • @Kostya I've added some new sections to address your concerns. 1. you were right, that wasn't a great argument. The real reason is more fundamental - see the post. 2. Note that the maximally efficient engine doesn't just take heat from C and put it in H, it takes heat from both reservoirs and converts all of it to work. This is how it is able to have an efficiency (defined as $W/Q_H$) greater than one. – N. Virgo Sep 28 '12 at 23:27
  • Thank you. That's quite an amazing result. If it is possible, then we can absorb energy from two reservoirs and completely converts all of it to work, and without any entropy increasing of the engine. So the most important thing is whether a zero-sum entropy cycle exists, by Kostya's argument, the entropy increased in one cycle should always $>0$. – Popopo Sep 29 '12 at 06:33
  • @Popopo that's right, but remember that you'd have to create the negative-temperature reservoir in the first place (which essentially means taking a system that can hold only a finite amount of energy and heating it up a lot), so it doesn't give you anything for free. – N. Virgo Sep 29 '12 at 10:20
  • 1
    @Popopo I've added an extra paragraph explaining this, at the end of the "Why does the temperature decrease" section. – N. Virgo Sep 29 '12 at 10:41
  • @Nathaniel I'm afraid that your argument is still breaks down to: "you have to use work to create a negative-temperature reservoir". And, as I said, then you'll have to agree that: "you have to use work to create a positive-temperature reservoir". – Kostya Sep 29 '12 at 12:58
  • @Nathaniel Second. I still insist that there is no cyclic process with $\delta S = 0$. While you are basing your argument on that. I suggest you to consider a pair of 2-level systems at positive and negative temperatures. And try to construct such a cycle (that was actually a path to my answer). – Kostya Sep 29 '12 at 13:03
  • @Kostya, to reply to your first point: we live in a world that contains many positive-temperature things. Yes these would require energy to create, but we don't need to do that because they exist already. On the other hand negative temperatures do not occur naturally, so it does matter that you need energy to make them. Also, that's not my whole argument at all. The important part is that removing heat from a -ve temperature reservoir will eventually turn it into a +ve temperature one, hence no perpetual motion. – N. Virgo Sep 29 '12 at 22:47
  • @Kostya (second point) your argument relies on an assumption that $\delta E_C>0$. I can see no reason to make such an assumption. In the case of +ve temperatures it can be derived from the second law, but as I showed in my answer, in the case where $T_H<0$, the same constraint implies you can have both $\delta E_H<0$ and $\delta E_C<0$. I can't see any problem in having a Carnot-type cycle with $\delta S=0$, as long as the "working fluid" is able to transition between +ve and -ve temperatures by being compressed/expanded. If I have time I'll work out an explicit example and add it to my post. – N. Virgo Sep 29 '12 at 22:54
  • "because the temperature of the negative temperature reservoir will decrease as heat is removed from it". I don't understand this argument. The whole point of the heat reservoir idealization is to provide an inexhaustible supply of constant temperature heat. You can't in the same breath refer to something as an (idealized) heat reservoir and say its temperature will decrease. – Asad Saeeduddin Nov 21 '13 at 23:50
  • @Asad usually we imagine reservoirs to be inexhaustible, but the question here was about why this doesn't give you energy for nothing. To answer that you have to relax the idealisation a bit and talk about a finite reservoir, i.e. an exhaustible one. – N. Virgo Nov 22 '13 at 03:49
  • @Asad in case it's not clear, a finite reservoir is just an object with a heat capacity. We assume it's homogeneous (i.e. its temperature doesn't vary across space, so at any given time it only has one temperature), but as heat is added or removed we allow its temperature to vary according to $\partial U/\partial T=C_V$. An infinite reservoir is just the same thing but with infinite $C_V$. – N. Virgo Nov 22 '13 at 04:23
  • @Nathaniel, what would a Carnot(or other reversible) cycle look like when it's not possible to cool the working fluid using heat transfer (qc<=0)? (This applies both to the 1 reservoir and the heat taken from 2 reservoirs version) – Matyas Koszik Nov 20 '19 at 03:34
  • @MatyasKoszik sorry for the delayed reply, I missed your comment somehow. With that assumption you end up exactly with Kostya's answer to this question - in that case there's no way to beat the Carnot efficiency. (My main point here, though, is that that's a rather artificial assumption, and I don't think it's true in general. I wrote this answer 8 years ago but still stand by it.) – N. Virgo Jul 01 '20 at 04:58
