140

I read some methods but they're not accurate. They use the Archimedes principle and they assume uniform body density which of course is far from true. Others are silly like this one:

Take a knife then remove your head.
Place it on some scale
Take the reading
re-attach your head.

I'm looking for some ingenious way of doing this accurately without having to lie on your back and put your head on a scale which isn't a good idea.

user5402
  • 3,013
  • 4
  • 19
  • 27
  • 33
    Pity I don't have the rep to post an answer, as I think I have a more accurate solution than the "relax your neck muscles" and similar ones: go to the morgue. Cut off the head of a recently deceased person with a similar body type. Measure the ratio of the weights of the head and body. Measure your weight. Even more accurate: measure the density of the head you just cut off. Now measure the volume of your own head by immersing it into water. The volume of the head does not vary as much as of the body, where muscle, fat, etc. play a role. For better accuracy, cut off many heads for an average. – vsz Jul 12 '13 at 20:59
  • Of course, like all good scientists do, you will need to empirically confirm that whatever ingenious methods you devised to measure the weight of your head actually works. That means, cutting your head off. Hint: having a friend that works in a morgue or crematory might be useful. – Lie Ryan Jul 12 '13 at 21:23
  • 3
    @LieRyan : I bet the inaccuracy resulting from measuring the density of heads of other people will be much less than the inaccuracy of finding the exact point which you consider the border between your head and body. – vsz Jul 12 '13 at 21:32
  • 2
    @vsz there is no rep requirement to post an answer. You don't even have to be registered. Anyone can post answers. – David Z Jul 12 '13 at 21:39
  • I've deleted a bunch of off topic (but not really "inappropriate") comments. – David Z Jul 12 '13 at 21:42
  • @vsz: it is possible to operationalize the definition of the border between head and body. One such example would be to take the midsection of the vertical line between the lowest point of the chin to the highest point of the shoulder when laying on a flat table. The definition is of course arbitrary, but it's objective and can be repeated for different people using different methods, and that's what matters. – Lie Ryan Jul 12 '13 at 21:42
  • There must be a tomography method that would work. Maybe MRI or neutron activation or something? Most of those methods would allow you to estimate the amount of water, which is probably the major component of mass. You could try seismic tomography to get the density (and then put your head in a toilet bowl and measure displacement for volume), but you would need incredibly sensitive tiny seismometers and the very short travel distance means you would need extremely precise timing. – foobarbecue Jul 12 '13 at 21:44
  • 1
    @DavidZaslavsky : it is when the question is protected from new users... – vsz Jul 12 '13 at 22:02
  • @vsz oh right, sorry, I missed that. (I'm not actually sure why this question was protected) – David Z Jul 12 '13 at 22:10
  • 2
    @foobarbecue - Abate N. Burns D. Peshock T et al. Estimation of adipose tissue mass by magnetic resonance imaging: validation against dissection in human cadavers. Journal of Lipid Research Volume 35, 1994; ppg 1490-1496. (comment about variation in adipose tissue proportion of human head/brain by individual omitted...) – Keith Flower Jul 12 '13 at 22:27
  • Why is "having to lie on your back and put your head on a scale" a bad idea? – MissingHandle Jul 12 '13 at 22:47
  • 13
    This question appears to be off-topic because the actual physics content is minimal. It exists merely because of the joke. Nobody is learning anything that they couldn't have invented themselves after a couple of minutes of thought. The post is taken up space on the site front page, and thereby drowning more serious posts. – Qmechanic Jul 12 '13 at 22:50
  • 2
    I will add that the decision to put this post on hold was reached by moderator consensus. – David Z Jul 12 '13 at 22:52
  • 2
    This must be a record for the number of answers received by a question before it was put on hold. 13 answers, most of them with equations, and 2000 views. – Mitchell Porter Jul 13 '13 at 02:12
  • 23
    Voting to reopen because it patently is about physics. – N. Virgo Jul 13 '13 at 02:58
  • 8
    I see answers appearing addressing tomography and Compton scattering. I challenge the remark "nobody is learning anything that they couldn't have invented themselves after a couple of minutes of thought". – Johannes Jul 13 '13 at 04:03
  • 2
    @Qmechanic If the human body is replaced with another inhomogeneous body and you want to measure the mass of some part of it without cutting or breaking it, the question will be "more into physics" and less off-topic?! I saw all sort of physics in the answers, how could it be off-topic? – user5402 Jul 13 '13 at 07:19
  • 2
    Isn't the "community wiki" adequate exactly for these types of questions? – vsz Jul 13 '13 at 07:37
  • Well, I was trying to say that the interest in this post seems to be caused by the morbid joke rather than the physics content. E.g. the voting pattern seems to a large extend to be dictated by the running gag rather than physics. One disturbing (now deleted) answer depicted (what could be interpreted as) a dead person with a rope around his neck, hanging. After 10s of answers, edits, comments, and deleted comments, I at the time thought that the joke had run long enough. – Qmechanic Jul 13 '13 at 08:18
  • @vsz No, we don't make questions community wiki anymore. – David Z Jul 13 '13 at 09:50
  • 1
    @Qmechanic I read a lot of answers to this question on the web most of them are jokes. I decided to put this question here for a serious discussion and creative answers. If some people find it a joke, it's their problem. – user5402 Jul 13 '13 at 10:04
  • 13
    I respectfully disagree with my colleagues on this (I wasn't around during the first moderator conference on the matter), and am going to cast the last re-open vote here. However, I want to emphasize that this I'm taking this step because there is physics here (good physics that does come up in an experimental context at times) *not* because the question is framed in an amusing way. Wannabe imitators whose questions don't have the physics content will be disappointed. – dmckee --- ex-moderator kitten Jul 14 '13 at 13:22
  • 2
    A corollary to re-opening this is that a lot of the answers here are exceedingly poor physics answers, and should be voted down without mercy. – dmckee --- ex-moderator kitten Jul 15 '13 at 07:30
  • 4
    One question can't "drown" out fifty on the main page. – Larry Harson Jul 15 '13 at 12:08
  • 3
    It is a very easy problem. Pick up a piece of chalk, and draw a rough human figure on the blackboard, with a big letter A on the face. Then start by saying, loud and clear "LET A BE A SPHERICAL HEAD WITH CONSTANT DENSITY RHO..." – Eduardo Guerras Valera Aug 20 '13 at 17:37
  • @vsz: I think you can now. – Abhimanyu Pallavi Sudhir Aug 31 '13 at 11:45
  • I'm a bit late to this! I've added an answer though, as it's not been mentioned, and I think it could seriously (if not very practically) work. I suspect it would be possible to build a volumetric mass density map by measuring rotational velocity changes due to conservation of angular momentum. – Benjohn Jul 05 '14 at 23:43
  • A decade late to the party with a boring question: How are we defining a head? Hilarious solutions aside, we need to do something like define a cutting plane (perhaps related to a fixed point on Atlas and a spinal axis? – Cort Ammon Mar 09 '24 at 15:05

28 Answers28

144

Get someone to relax their neck as much as possible, stabilize their torso, then punch them in the head with a calibrated fist and measure the initial acceleration. Apply $\vec F=m \vec a$.

Ali
  • 6,006
twistor59
  • 16,746
  • 9
    This ignores any reaction force from the neck. What you will get is the effective mass of a pivoted rigid body, $m_{eff} = \frac{I+m c^2}{L^2}$ where $c$ is pivot to center of mass, and $L$ is pivot to force distance. – John Alexiou Jul 12 '13 at 13:45
  • 2
    It does, but assuming the neck was elastic to some extent (i.e. more like a spring than a rigid pivot), then by approximating an ideal impulse (making the spatial duration short and the applied force large), I was hoping the reaction force from the neck could be made negligible. Of course there are practical problems - the shorter the distance over which the observation is made, the greater the error bar on the acceleration. – twistor59 Jul 12 '13 at 13:55
  • A similar method has been used, though I don't think the goal was to measure the weight of the participants' noggins. If only they took a few measurements during the procedure... – Phil Jul 12 '13 at 15:01
  • 9
    This technique fails for all the obvious reasons, but it's too funny not to upvote – Mike Pennington Aug 17 '13 at 14:22
  • @MikePennington OK I did introduce the callibrated fist for its comedy value, but I still think something along these lines could be made to work: attach accelerometers to your head, and apply a known impulsive push over a very short distance (a few millimeters?), short enough such that the reaction force from the neck was negligible when the head was moved through this distance. If the head was relaxed/floppy at the time the impulse was applied there may be some possibility of a reasonable estimate. – twistor59 Aug 18 '13 at 11:44
  • 1
    perhaps a practical question... your answer assumes that we already know the head's center of gravity... if you have ideas for finding that I am curious... – Mike Pennington Aug 18 '13 at 16:34
  • @MikePennington Well certainly it assumes that the head and its contents are entirely rigid, so anything deformable or which rattles around a bit (like the brain) would tend to mess up this approach, I have to admit! – twistor59 Aug 18 '13 at 17:57
72

Here are some methods I came up with:

Newton's Method:

  1. Measure the whole body's mass, let's call it $M$.
  2. Now detach the head, and put it a distance $d$ apart from the body.
  3. Measure the gravitational attraction of the two parts of the body (let's call it $F$).
  4. We have a system of equations to solve: $$ \left. \begin{alignat}{7} & m_1+m_2 & = M \\[5px] & \frac{G m_1 m_2}{d^2} & =F \end{alignat} \right\} ~~ \Rightarrow ~~ F = \frac{G}{d^2} m \left( M - m \right) \,, $$ which is a quadratic equation and has two real roots. Head's mass is probably the smaller one!

Einstein's Method 1:

  1. Shine a light ray, close to the person's head.
  2. Measure the deflection angle $\delta \phi$.
  3. The mass can be calculated from this equation: $$M=\frac{c^2 b \delta \phi}{4 G} \,,$$ where $b$ is the distance of closest approach, and $c$ is the speed of light.

Einstein's Method 2:

  1. Measure the wavelength of an out-coming ray(an absorption line for instance) from your head.
  2. Calculate the redshift, and the rest is easy peasy.

Heisenberg's Method:

  1. Measure the whole body's weight, using a scale.
  2. Continuously measure the rest of the body without looking at the head(Now this step is crucial, no one should look).
  3. After a long time measure the head, if it's still connected to your body return to step (2), otherwise continue.
  4. Now that the head is effectively detached, you can weigh the rest of the body and calculate the difference.

Fermi's Method:

  1. By all means you can consider the head to be a sphere with radius $r=0.1$ meters.
  2. The density of head is more than water $\left( {10}^3 \frac{\mathrm{kg}}{\mathrm{m}^3} \right)$ and less than stone $\left( 5.5 \cdot {10}^3 \frac{\mathrm{kg}}{\mathrm{m^3}} \right)$ we'll take the geometrical mean $\rho = 2.3 \cdot {10}^3 \frac{\mathrm{kg}}{\mathrm{m}^3}$
  3. Now the mass will be: $m=\frac{4}{3}\pi r^3 \rho = 10 \, \mathrm{kg}$ ("$\approx$" is not necessary :)).

Hooke's Method:

The neck can be modeled as a spring, let's assume its stiffness is $k$.

  1. lie on the ground and measure the neck's rest length $\left(l_0\right)$.
  2. Hang from a tree upside down, and measure the neck's length $\left(l_\text{h}\right)$; now if we know $k$, the head's weight will be: $$W_\text{h}= \left(l_\text{h}-l_0 \right)k \, . \tag{1}$$
  3. We still don't know $k$, and we have to find it. While you are still upside-down, hang some known weights to your head and measure the neck's length respectively.
  4. Plot the weights with respect to spring's length, the slope will be its stiffness constant. Now using formula $\left(1\right)$ we can calculate head's weight.

Mansfield's Method:

Take MRI pictures of the head, which, using my technique will give the 3D density plot of head within few seconds. Now the rest of the problem is just banana cake.

Zeno's Method:

While this method might not be practically efficient, it has incredible philosophical advantages!

  1. Cut half of what has remained from the head,
  2. weigh it,
  3. Go to step (1)

Pair Annihilation:

Find your dual(which presumably has opposite quantum numbers than yours), slowly bang your heads together(be careful with the rest of the body). We will measure the released energy(call it $E$), your head's mass will be: $$m=\frac{E}{2c^2} \,.$$

Kitaev's method: Quantum Phase Estimation Algorithm

Upload the quantum state of your head on a quantum computer; this can be done using the quantum teleportation protocol (Be advised, the measurements involved can have some destructive effects on your head!). We define the Mass unitary operator $M$, such that states with known masses are its eigenstates:

$$M|m\rangle = e^{2\pi i \theta_m}|m\rangle\, ,$$ where $\theta_m$ is proportional to the mass of the object the state $|m\rangle$ is representing.

By applying the quantum phase estimation algorithm, with high probability you can get a good estimation of the value $\theta_m$. Better yet would be to have multiple copies of yourself so you can repeat the process and get a more accurate result.


To be completed ...

Ali
  • 6,006
58

Petroleum engineers would all provide you with the same answer "use Compton scattering", as this is how the mass density of rock formations gets measured deep in oil wells.

A more complete answer is: Compton scattering can provide you with a measurement of the bulk density of your head. Combine this with a volumetric measurement (dipping your head in a tank and measuring the rise in level), and you're done. You also need a (once off) calibration of the density measurement, as explained below. The big advantage of such a Compton measurement is that it can be repeated and automated at will. Based on accuracies obtained in boreholes, I would expect Compton measurement capable of yielding head weights with a sub-percentage accuracy.

The Compton scattering measurement is done by scanning your head with a gamma ray beam, and measuring the beam attenuation. The gamma ray source should create photons with high enough energies to interact by Compton scattering, but low enough to avoid pair production. 137Cs provides a good source. Although Compton scattering depends on electron density and not on mass density, the measurements can be calibrated to give the correct bulk density for human heads using the ratio of the electron density to the nucleon density. This is based on the observation that the electron density is equal to the bulk density multiplied by Z/A where Z is the average atomic number and A the average atomic weight of the atoms in a human head. In practice, this calibration is best done using heads decapitated from dead bodies.

Johannes
  • 19,015
  • 2
    "Based on accuracies obtained in boreholes" You had me up to boreholes. – CLo Jul 12 '13 at 16:09
  • 35
    I thought you were about to suggest another technique used by petroleum engineers, which is to blow an explosive in one ear and measure the wave propagation with sensors over the rest of the head, to determine the internal structure. – babou Jul 12 '13 at 16:48
  • 17
    "The Compton scattering measurement is done by scanning your head with a gamma ray beam**" sounds safe enough, you try first. – Thomas Jul 14 '13 at 21:08
  • 4
    "Scanning your head with a Gamma ray beam" is only slightly less destructive than cutting you head off and putting it on a scale. – WillMcLeod Aug 01 '14 at 17:21
  • @WillMcLeod Scanning your head with gamma rays is done frequently in a medical context, so it's safe to say it's much, much less destructive than decapitation. – Chris May 31 '18 at 21:52
50

Steps:

  1. Take a trip to deep space (space suit recommended; means of transportation left as an exercise for the reader). It is important to compute the Hill sphere of your body to make sure it is large enough at this stage. Really it's a Hill-roughly-person-shaped-spheroid-blob, but feel free to assume a spherical you to simplify the calculation.

  2. Deploy a constellation of micro-satellites in orbit around yourself (see Fig. 1).

  3. Carefully track the motion of every satellite.

  4. Process telemetry data to measure the mass distribution of your body, head included.

  5. (optional) Return to Earth.

  6. Profit!

$\hspace{75px}$$$ \small{ \begin{array}{c} \textbf{Figure 1:}~\text{Micro-satellites deployed in gravimetric tracking mode.} \\ \text{Careful monitoring of telemetry is required to determine} \\ \text{the mass distribution of the central body.} \end{array} } $$

Composited from source images here and here.

Nat
  • 4,640
Michael
  • 16,512
  • 2
  • 49
  • 69
  • I think your comment on babou's answer with some equations could be a good answer. – user5402 Jul 12 '13 at 13:10
  • @metacompactness I was quoting his suggestion which he has now edited out of his answer. – Michael Jul 12 '13 at 13:14
  • This experiment isn't very practical but at least step 5 is optional. – user5402 Jul 13 '13 at 07:23
  • Won't the equipment and space suit skew the results? – Thomas Jul 14 '13 at 23:39
  • 1
    @Thomas with enough data you could account for that. It would take some advanced numerical computation to do it accurately, but in principle you could measure the complete mass distribution this way. There won't be any simple analytical formula in this case. By the way, I said the space suit was "recommended" - if you don't want to wear one that's your choice. ;) – Michael Jul 15 '13 at 00:13
  • @MichaelBrown Ah I see, that is quite nice. I think I'll go with the suit though, otherwise I might not have enough mass for those satellites to get a stable orbit :p – Thomas Jul 15 '13 at 00:16
  • Why the downvote? Is it because of the physics (which is sound as far as I can see), or because the tone is less than serious? – Michael Jul 15 '13 at 08:14
  • Too expensive!! – Daniel Mar 10 '15 at 05:31
41

Thanks a lot for your votes for the "answer" below. Unfortunately I think now the solution does not work. It is great for two slices, but that is the end.

There is another solution that should give 3 slices, which is still a bit short. And I am afraid I do not see how to use the two available steps to start building a recursion :-)

Why ? It is clearly possible to cut the rod in $n$ "homogenous" slices, and then do the $n$ measurements, so as to get a set of $n$ equations with $n$ unknown, the weights of each slice. So we feel the problem conquered. The hitch is that these equations are linearly dependent and have an infinity of solutions, because balancing the rod depends only on the center of mass and the total weight.

Equations are a tricky business, especially when we forget to solve them.

Too bad, especially today, that I am in France right now, and the country has its national holidays: July 14th, aka Bastille day.

So I was hoping that this year, cutting heads could be declared unnecessary.

Let's try to do better for next year.
And do not lose hope... mistakes are interesting too, in their own way, and very educational.


My first reaction was to measure volume with Archimedes's principle. But that does not work since the body density is variable. I was realizing that as @Manishearth made the comment.

An alternative, is to put yourself on a scale composed of a plank with a central pivot so that only your head is on one side. And you balance the difference between head and body with weights. This does not work a priori because you do not know the mass repartition of your body, and not all the mass has the same distance to the pivot.

Then what you can do is to do this measurement many times, while moving progressively the body from one side of the plank to the other side, measuring each time the difference in torque due to the weight.

I have not yet worked out the mathematics (and I am not sure I can still do that, probably yes with some effort) but I think that should provide data to determine the longitudinal weight repartition of the body. This reminds me a bit of the way medical scanners work, though this weight problem is probably simpler.

To be convinced that the approach may work, one can first approximate the body as a rod, such that the two halves are each homogeneous but have different weights. Two measurements should allow finding the respective weights of the two halves.

$\hspace{50px}$

You then get the following equations:

$$ \begin{align} \frac{l}{2}m_1 &~=~ \frac{l}{2} m_2 + lm_3 \\[2.5px] \frac{3l}{4}m_1 + \frac{l}{4}m_2 & ~=~ lm_4 \end{align} $$

The weigths $m_3$ and $m_4$ are known, and the length $l$ is of course measured and known. Thus the equations can be solved to get $m_1$ and $m_2$.

This can be generalized to any number of slices.

In my above quip about being able to do the mathematics is not with respect to resolving a set of linear equations. Rather, I was wondering is there is some kind of transform to express a continuous description of this approach. As I said, I was somewhat inspired by the way medical scanners are working (or maybe the analogy hit me afterwards... hard to know).

This can be generalized to many homogeneous segments approximating the body density repartition.

Nat
  • 4,640
babou
  • 3,798
  • 28
    "Now there is an alternative that avoids this difficulty but is somewhat unpleasant. You hang yourself by the feet to the scale and measure your weight. Then you do the same with your head only immerged in water." If anyone does this please put it on youtube. – Michael Jul 12 '13 at 09:58
  • 3
    Uh, no, this assumes that the avg density of the head is same as that of the body. This is false, the head is significantly denser. The difference of measurements is $\rho_{water}\Delta V$, where $\Delta V$ is the volume of the head. – Manishearth Jul 12 '13 at 10:01
  • @Manishearth Thanks. I was just realizing that when you wrote the comment. Too bad I had to remove the text, as it amused me (and apparently others). Here is another solution, without all the math worked out, but I am convince it is workable, with arbitrary precision, up to restlessness of the measured subject. But theoretical slicing of people still makes me uneasy. I prefer to hang them in water. – babou Jul 12 '13 at 10:40
  • It's OK, I've made the exact same mistake on a different question here. Re:slicing: I was actually in the process of typing an answer to that effect, see below :) – Manishearth Jul 12 '13 at 10:51
  • Hmm, can't remove the downvote unless you edit it again. Oh well :/ – Manishearth Jul 12 '13 at 11:17
  • @Manishearth I did edit ... but apparently people are more interested in boxing. Drowning people seemed also a popular game, but slicing them is apparently too gore for this forum. We might have more success on SciFi and fantasy. – babou Jul 12 '13 at 12:28
  • @babou it's not that people like boxing more its the calibrated fist. Something just.... cool about a calibrated fist. – Ryan Jul 12 '13 at 14:52
  • I think the general way of doing this is using a torque meter, and varying the position of the fulcrum as the body is resting on the stiff board. Torque is the integral of $r \times dF$, or $r g dm$, and you can write the mass in terms of body density as a function of distance. Then you have to rely on sophisticated numerical techniques to reconstruct the density function based on your torque measurements.. I believe that this is related to the Radon Transform (http://en.wikipedia.org/wiki/Radon_transform) – Mark Lakata Jul 12 '13 at 16:41
35

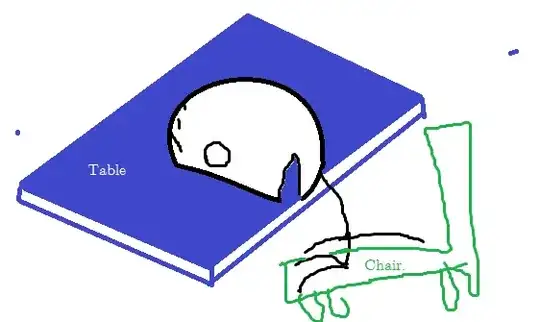

I would do it like this:
$\hspace{50px}$!

The muscles of the neck have to be as relaxed as possible so that it approximates a flexible linkage, such that at some point along this linkage (which we can identify as the division between the head and the body, and thus the mass of the head includes a portion of the neck), if we separate the body into two free-body diagrams, there is no net vertical force being exerted between the two.

An assistant can read the scale.

The real difficulty is introduced if you define "head" as that portion of the skeleton, and ajeacent tissue, which excludes all vertebrae of the spine and everything below.

Nat
  • 4,640
Kaz
  • 3,079
  • 6
    you get +1 for the alien as a person picture. Also +1 because if he is not to picky this quite possibly would do what he want's to do. – Ryan Jul 12 '13 at 14:49
  • You don't need an assisstant, if you are ok with attaching some mirrors. – Abhimanyu Pallavi Sudhir Jul 15 '13 at 18:34
  • 1
    "which isn't a good idea" according to the question! – Ali Jul 17 '13 at 08:03
  • @Ali I didn't even notice that, and it's in the question's very first edit. Be that as it may, it's not a reasonable constraint. The question doesn't justify why it's not a good idea. – Kaz Jul 17 '13 at 21:04
21

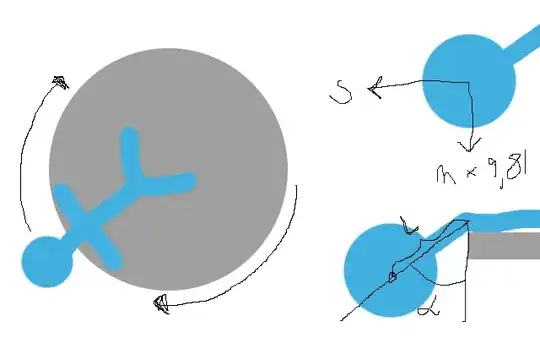

Steps:

  1. Person A lays down on a carousel with its neck over the edge. Person B knocks A out. Person C spins the carousel. B clocks the time. Person D takes pictures of A's head as it goes around.

  2. Measure the angle of the head by looking at the pictures.

  3. Do the vector math.

$\hspace{75px}$

Nat
  • 4,640
  • 1
    What about accounting for the neck's material resistance to, and limited degree of, flexion? – Matt Ball Jul 12 '13 at 18:47
  • This can be done with asymmetric objects. The angle must be measured from the head and necks shared gravitational centre. The mass of the neck will therefore be part of the final answer. It's not a pendulum, more like a hinge. Flexion is fine in the range of potential angles (face down). – user2574264 Jul 12 '13 at 22:20
  • 7
    I think you broke his neck.. interesting approach though +1 – Thomas Jul 14 '13 at 21:10
  • The angle would be independent of the mass, this would just tell you the rotational velocity. – Rick Sep 28 '15 at 13:59
14

Assume the body to be made of N sections $S_i$ of uniform linear density $\lambda_i$ and length $l_i$ and center of mass $r_i$ (from one end). Increase N as much as you want to get a more accurate reading. The sections need not be of the same length. Try to slice your body into approximately homogeneous sections (homogeneous with respect to mass-per unit length, not volume density).

Now, set up a seesaw-like system with a plank on a log or other pivot. Find a friend or grad student.

Now, sleep on the plank with the boundary between section $S_j$ and section $S_{j+1}$ right above the plank. This will be at a distance $L_j=\sum\limits_{i=1}^{j} l_i$ from one end. Have a friend attempt to balance the system using weights. He will get that some weight $M_j$ will balance the plank when placed at $R_j$.

Repeat this measurement for $j= 1 \to N-1$. Now, write torque equations for each system, assuming that each section has a linear density $\lambda_i$. These equations will be of the form:

$$M_j R_j ~=~ \sum\limits_{i=1}^N \int\limits_{L_j}^{L_j+l_i} \lambda_i x \, \mathrm{d}x \,.$$

Solving the integral, we get:

$$M_j R_j ~=~ \sum\limits_{i=1}^N \frac{\lambda_i}{2} \left(l_i^2 +2l_iL_j \right) \,.$$

You now have $N-1$ equations in the $N$ variables $\lambda_i$. Your $N^\text{th}$ equation will be $\sum l_i\lambda_i =M_{\text{you}}.$

Now, simply calculate the head-mass for the idealized system, and that will be approximately your head mass. Accuracy increases as $N$ does, though you can also increase accuracy by smartly partitioning the system.


The simpler method is decapitation and measurement.

Reattaching the head is, of course, left as an exercise to the reader.


Alternate solution #2:

Break in to LIGO. Go wiggle your head near the interferometer. Memorize the readings on your way out.

(Note: In all seriousness, this probably won't work because LIGO isn't tuned to detect the gravitational waves of head wiggles)

Nat
  • 4,640
Manishearth
  • 18,936
12

A brilliant book by Tom Cutler: 211 Things a Bright Boy Can Do has a section which shows you how to weigh your head accurately.

This method is easy to understand, and quite practical. It doesn't even involve harming yourself as most of the other methods listed above do. You can actually do it.

Here's the excerpt:

There can’t be many problems more vexing than that of weighing your head. For a start, how do you decide where your head ends and your neck begins? And once you’ve decided this and marked the junction with an indelible pen, what next? It’s a riddle that beat even Archimedes. So here is a method that will produce a good estimate of the weight of your head the next time you find yourself at a loose end.

Required:
· A plastic kiddie pool
· A plastic rainwater barrel
· A plastic bucket
· A plastic measuring jug
· A plastic chair
· Some bathroom scales
· Your head

Method

  1. On a nice day, inflate your kiddie pool in the yard. Divert any bathers from wading into it.

  2. Put your barrel into the pool and fill it (the barrel) with warm water, right up to the top. Do not allow it to overflow.

  3. Shave all your hair off. You’ll get a more accurate measurement this way. Because you are bald no water can be removed by capillary action.

  4. Stand on your chair, hold your breath, and lower your head slowly into the water until it is submerged up to your Adam’s apple. The displaced water will flow down the sides and collect in the bottom of the pool. Slowly take your head out again.

  5. Pour the collected water (from the pool) into your bucket. This is the most annoying part of the experiment because the pool is full of water and you need to move it without spilling any. You can, if you are ambitious, begin the experiment by digging a deep hole in the lawn, into which you now crawl with your bucket, so as to siphon the water from the pool.

  6. Measure, and jot down, the volume of water in your bucket by pouring it into your measuring jug. If the jug’s too small, do it in steps.

  7. Empty the bucket and the jar for the next measurement.

  8. Put the barrel back and fill it to the brim again. Take all your clothes off and weigh yourself. Note down this weight.

  9. Get on the chair and climb carefully into the barrel, completely submerging yourself. After a moment climb out and pour the displaced water into the bucket and then into the measuring jug, keeping a note of the final amount.

  10. Multiply your body weight by the ratio between the two figures. This will give you the weight of your head.

  11. Put your clothes back on.

$\hspace{100px}$

PS: I've added a bit to the text because some parts were unclear. :)

mikhailcazi
  • 1,568
  • 1
  • 10
  • 18
11

High school chemistry method

Take pictures of your head from at least 129600 different equally spaced out angles. Samples:
$\hspace{100px}$.

Load them onto the computer, use Mathematica to intersect images at different angles for an approximate 3D model of your face. Find a surface of best fit.

Sample parameterisation: $$ \begin{alignat}{7} x&=0.09 \, \cos\theta \, && \sin\varphi \\ y&=0.09 \, \sin\theta \, && \cos\varphi \\ z&=0.09 \, && \cos\varphi \end{alignat} $$

Use a dropper and a knife to take some small, random samples of your head – the flesh, the cavities (if you're actually following me on this, I'd assume a pretty big one near the top), etc. Your head will become perforated, but that's a small price to pay for the pleasure of finding things out.

$\hspace{250px}$

Measure the densities of these samples – and do it quickly, before they dry up – and plot them as a scalar field across the 3D model.

Now use your perforated brain to calculate a simple volume integral:

$$M=\iiint_V \rho\left(x,y,z\right) ~ \mathrm{d}V$$

Quod erat demonstrandum. Also: mortuus es.

High school physics method

Bang your head on a table. Once it stabilizes, stick a spring balance to it and measure the force required to drag it. Apply $F_k=\mu_kgm$.

$\hspace{100px}$

Just-learnt-quantum-mechanics method

Pluck out your head. Launch it into free space, and keep observing it. Once you have a good data set (this might take a while), apply Schrodinger's equation.

$\hspace{175px}$

The classic way to launch a head into space is via a space shuttle, but there's some probability of a mere human throw achieving escape velocity.

Just-learned-general-relativity method

Same as above, but calculate the metric tensor near your head and compare to the Kerr metric. Here it is, for reference:

$$ c_0^{2} d\tau^{2} = c_0^{2}\left( 1 - \frac{r_{s} r}{\rho^{2}} \right) \mbox{d}t^{2} - \frac{\rho^{2}}{\Delta} \mbox{d}r^{2} - \rho^{2} \mbox{d}\theta^{2} - \left( r^{2} + \alpha^{2} + \frac{r_{s} r \alpha^{2}}{\rho^{2}} \sin^{2} \theta \right) \sin^{2} \theta \mbox{d} \phi^{2} + \frac{2r_{s} r\alpha \sin^{2} \theta }{\rho^{2}} c_0 \mbox{d}t \mbox{d}\phi $$

Just-learnt-special-relativity method

Get into an insulated environment in a power station with 50% efficiency. Bang your head against your antiparticle's to free yourself of fermionic matter. Get someone to use the generated electricity to power a donkey's motion.

$$m=\frac12 (\gamma_{\mathrm{donkey}}-1)m_{\mathrm{donkey}}$$

This method suddenly looks normal

Swap your neck to a spring balance and hang upside down.

$\hspace{225px}$

  • 4
    +1 for the effort, even if it's a little comical in tone – Larry Harson Jul 15 '13 at 12:05
  • 2
    Method 3 is obviously not reliable as the sliding of the head on the table will entail more parts of the head coming in contact with the table, giving a variable value of $\mu_k$. Not to mention that the head + neck system is a continuous mass distribution, so $m$ is variable too. – shortstheory Oct 03 '13 at 14:07
5

Here is a way to measure it using the person's moment of inertia. Also, compared to many of the other answers to this question, this method is not only feasible, but actually reasonably safe for the subject.

  1. Measure the mass $m$ of the person; the length $l_b$ and average cross-sectional width (from the front) $w_b$ of the person's body (excluding the head); and the length $l_h$ and average cross-sectional width $w_h$ of the head of the person whose head we wish to know the mass of.
  2. Obtain a rigid stretcher that includes restraint straps, like this one:
    $\hspace{100px}$.
  3. Securely mount the person whose head is to be measured onto the stretcher, using the included restraint straps, so that the 'front' of the person is facing upward.
  4. Measure the moment of inertia $I_{\text{gross}}$ of the person in the stretcher about an axis extending upward through their neckn.
  5. Measure the moment of inertia $I_{\text{tare}}$ of the stretcher (without the person in it) about the same axis.

Now compute the net moment of inertia: $$I = I_{\text{net}} = I_{\text{gross}} - I_{\text{tare}} \,.$$

For simplicity, I will model the head and body of the subject as if they were thin rectangular plates rotated about the axis at one end.

Let $m_h$ be the mass of the head of the person, and $m_b$ be the mass of their body. We know, then that $m_h + m_b = m$, or in other words, that the masses of their head and body together add up to the mass of the entire person.

$$I = \frac{m_bh_b^2}{3} + \frac{m_bw_b^2}{12} + \frac{m_hl_h^2}{3} + \frac{m_hw_h^2}{12}$$

Solving this equation yields:

$$m_h = \frac{4 l_h^2 m+w_h^2 m+12 I}{4 h_b^2+w_b^2+4 l_h^2+w_h^2}$$

Going further:

If you wished, you could use a more accurate model of the person, resulting in a more complicated equation for their moment of inertia. Also, if one wished to obtain a more accurate measure, one could measure the person's moment of inertia about several different axes, in order to compensate for nonuniformities in the density of the body as a whole, rather than just differences in the density of the head and the rest of the body.

Nat
  • 4,640
  • 1
    You can't separate the $I$ of the head and the body without modeling it. You've modeled it as thin plates of uniform density. It doesn't take into account varying densities within the "plates" (ie bones versus brain). It would be nice to basically define a plane that "bisects" the neck into "head" and "body" and come up with a measurement technique that requires no modeling of the tissue. – Mark Lakata Jul 12 '13 at 20:59
  • @MarkLakata The extension to the solution that I discussed at the end for this problem only requires modeling of the volumetric properties of the body, so a model is much easier to obtain, because you can directly measure it. Basically, the more sections you subdivide the body into, and the more points you measure the moment around, the better the answer you can get. Getting this volumetric model is what the first step is all about, you can make it more complex as desired. – AJMansfield Jul 12 '13 at 23:44
  • You are still assuming that density is known. Moments of inertia are calculated as the integral of mass density times distance. Your "thin rectangular" plate model, for example, assumes the mass density of the rectangle is the constant. – Mark Lakata Jul 14 '13 at 06:03
  • @MarkLakata What I am assuming is that as the size of each subsection approaches zero, its density becomes constant. As you subdivide the body into smaller and smaller sections, the density of any one section gets more and more constant. While it is perhaps true that these subsections will never actually have completely constant density, you can just keep subdividing into smaller sections (with consequently less variation between them) until the variations within each section are low enough to allow us to get our target number of significant digits. – AJMansfield Jul 14 '13 at 17:56
  • Yes, that would work. The key is that you will need to make at least N measurements at different axes to determine the N unknowns in your model, and then solve all the equations at once. – Mark Lakata Jul 15 '13 at 16:40
  • Isn't the moment of inertia of a rigid body a tensor? More specifically, it's a $3 \times 3$ matrix, so *all* your measurements above can be calculated knowing just nine numbers. – Peter Shor Jul 15 '13 at 20:33
  • :-) I suggested much the same idea and thought I'd been jolly clever – now I'm not so sure @PeterShor. I think I might ask it as a question! – Benjohn Jul 06 '14 at 00:04
  • I've asked a question about this specific approach. No answers yet though. It seems to me that the samples of moments of inertia would basically define a signal that is the underlying mass signal, convoluted with a V shaped function (distance of the mass from the centre of rotation for that measurement). Once sufficient samples were collected, the underlying mass signal could be obtained by deconvolution. – Benjohn Jul 07 '14 at 10:17
4

A safe (albeit not entirely comfortable) method is the following:

Ask a partner to hang you upside down using a rope around your ankles. Tell him to swing you with a small amplitude. You relax your body and ask him to measure the swing period. Now bend your head, keep it in fixed position, and again ask your partner to measure your swing period.

Knowing the local gravitational acceleration $g$, and using the expression relating the swing period to the distance the center-of-mass is away from the pivot point: $$t_{\text{swing}}^2 ~=~ \frac{4\pi^2}{g} \, \frac{\int\limits_{0}^{L} m\left(z\right) z \, \mathrm{d}z}{\int\limits_{0}^{L} m \left(z \right) \, \mathrm{d}z}$$ (with $z$ measuring the distance away from the pivot point), from the change in period you can work out the change in the position of your center of mass.

Provided you weigh yourself afterwards (or better yet: yourself including the rope) and provided you have an accurate estimate of the change in height of the center-of-mass of your head (tip: record the scene with a digital video camera, and ensure you have access to reliable information on the center-of-mass of human heads), you get a good estimate of the mass of your head.

Nat
  • 4,640
Johannes
  • 19,015
  • 2
    It feels like 'reliable information on the center-of-mass of human heads' is cheating - if you know the center of mass of your own head, you probably know its mass. – jwg Jul 15 '13 at 07:34
  • 1
    Human heads vary in size and weight, but little in position of center-of-mass. You need to know that on average human heads have their centre-of-mass right between the ears. No other a-priori info is needed, and you certainly don't start of with any knowledge on the mass of your own head. – Johannes Jul 15 '13 at 13:35
4

You'll need something like this. The green things are pulleys (consider massless, frictionless).

Also, get some ropes, tie them around your feet and gently lower yourself until your head is under the liquid.
$\hspace{100px}$
Measure the mass of the displaced water $m_d$.

At this point, a buoyant force $F_b$ is acting vertically upwards. Weight $W$ is acting downwards.


Case 1 (weight exceeds buoyant force)

If weight is more (try and feel with your neck muscles, in which direction the force is acting), make the apparatus as follows.
$\hspace{100px}$
The the strings to your head (the ears or around under your chin is a good spot to tie). Experiment with different weights and obtain a mass $m_e$ such that you feel no force on your neck muscles.

Now $$ \begin{align} W & = m_e g + F_b \\[2.5px] mg & = m_e g + m_d g \end{align} $$

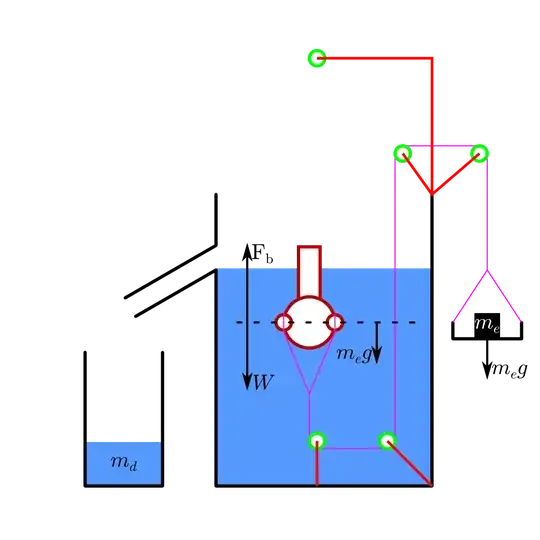

Case 2 (buoyant force exceeds weight)

Set the apparatus as follows:
$\hspace{100px}$.
Obtain a mass $m_e$ in the same way such that you feel no external force.

Now $$ \begin{align} W+m_e g & = F_b \\[2.5px] W &= F_b-m_e g \\[2.5px] W &=m_dg -m_e g \end{align} $$


Now about calculating that force you feel in your neck muscles, you can attach a modified (extremely sensitive)spring balance like instrument which rests between your chin and shoulders, calibrated to indicate "zero" force in space.

One drawback is the slight compressibility of the body(around your neck) which might absorb some of the buoyant force.

Nat
  • 4,640
user80551
  • 951
3

The solution has to be static. Any motion through the neck (relative DOF from body) is going to require very detailed modeling of the bones and muscles to achieve the proper result.

I propose a straight up weight of the head, with careful attention in keeping the neck as loose as possible and as horizontal as possible. See below for an example. You want no muscle forces on the neck (apply anesthetic if needed). Now move the head slowly up and down until you get a linear relationship between elevation and head force, and so you need to average the force around where you think the natural position of the neck is.

$\hspace{100px}$

Nat
  • 4,640
John Alexiou
  • 38,341
2

On a turning roundabout, if you pull your body in to the middle, it will speed up due to conservation of angular momentum. If you lean out, it will slow down, for the same reason.

Now, what about if you lie down flat on a large comfy roundabout with your feet at the centre of rotation and your head pointing out. What will happen to the roundabout speed if you are slowly moved inwards until the top your head is at the centre and your feet are out? First it will speed up, and then, after the centre of balance, it will begin to slow down again. The exact way that it does this will tell us a lot about the distribution of mass in your body.

I speculate that, at some expense, it would be possible to build a mechanism that could:

  • Continuously rotate you while
  • Moving your body on the rotating platform and
  • Carefully measure the change of angular momentum resulting at each translation.

You'd be stuck on it, turning around, for a while. But it has the up-side of not being fatal.

Using computation, and a mathematical process called deconvolution, I believe it would be possible to build up a volumetric mass density map of your whole body. By simply weighing yourself, you can turn densities in to actual masses.

Now, you can decide which part of you is your head, and ask the software to measure its mass.


To get a 3D volume model, the mechanism would have to also roll you over, as well as translating you in $x$ and $y$ (while you gently turn). To obtain a 2D map, which would be sufficient for the head measuring use case, just $x$ and $y$ translation would be sufficient.


I'm not certain this approach works. It may be the case that the measurements are not linearly independent of each other, and that all you will discover is the centre of mass. I have asked another question here on Phy.S.E. about this.

Nat
  • 4,640
Benjohn
  • 3,090
  • 2
  • 14
  • 19
2

OK, here is my take:

  1. In a large bath immerse the body in salt water so that it floats. Get a photo, the plate perpendicular to the horizontal plane along the body, and measure the height out of water.

  2. Get the volume of body and head by measuring the weight of the body up to the neck and then fully immersed, knowing the density of water.

  3. Suppose for ease of algebra it is two balls:

    • a large ball with density $\rho_1$, volume $V_1$; and

    • a small with density $\rho_2$, volume $V_2$ and $\rho_1 < \rho_2$. The mass of $V_2$ + mass of $V_1$ is $M$.


    Let the ratio of the height out of water of $V_1$ to the height of $V_2$ be $a$ . We have$$ \rho_1V_1+\rho_2V_2=M \qquad \text{and} \qquad \frac{\rho_1}{\rho_2}=a \,, $$so noting that $\rho_1=a\rho_2$, then$$ a\rho_2V_1+\rho_2V_2=M \,,$$hence$$\rho_2=\frac{M}{V_2+aV_1}\,.$$

  4. Now with a computer numerical integration one can do an integral over heights in the photo for a real body with irregular features and work with averages.

Nat
  • 4,640
anna v
  • 233,453
  • It is incorrect to say that $\frac{\rho_1}{\rho_2} = a$. The height out of the water of a floating body does not bear any relation to the distribution of mass, only to the total mass and the distribution of volume by height. – jwg Jul 12 '13 at 15:03
  • This assumes that the average density of the head is the same as that of the body, which is untrue (The head is much denser). See http://physics.stackexchange.com/questions/70839/how-can-you-weigh-your-own-head-in-an-accurate-way/70849?noredirect=1#comment144725_70844 (That answer has since been edited, but my comment there applies here too) – Manishearth Jul 12 '13 at 15:12
  • @Manishearth I have two densities, one for V1 ( body) and one for V2 ( head). The denser the body the deeper it sinks. – anna v Jul 12 '13 at 16:35
  • @annav Ah, oops. Still, it's pretty inaccurate to assume that the body has uniform density. – Manishearth Jul 12 '13 at 16:40
  • @jwg http://en.wikipedia.org/wiki/Archimedes%27_principle#Principle_of_flotation " Any floating object displaces its own weight of fluid.". You could critisize my assumption of the vertical displacement being proportional to the volume. – anna v Jul 12 '13 at 16:44
  • @annav That only works if it is freely floating. In this case, the head is attached the body. Otherwise, the volume of water displaced=the volume of immersed portion. – Manishearth Jul 12 '13 at 16:51
  • @Manishearth any good yoga practitioner can relax the neck to the point of being independent :). Certainly when I am swimming on my back I can feel my head going deeper in the water. But yes, it is an approximation . – anna v Jul 12 '13 at 17:24
  • Ha! Ah, OK, I thought you were talking of an exact method. To me, this seems pretty rough, but not bad :) – Manishearth Jul 12 '13 at 17:47
  • @annav A floating object displaces its own weight of fluid. This is why I said the height out of water depends on the total mass. However this has nothing to do with the densities of separate parts of the body which are in or out of the water. You have not given any justification for $\frac{\rho_1}{\rho_2} = a$, please try to do so and I let you know if I still think it's an error. – jwg Jul 15 '13 at 07:28
  • @jwg see my conversation with Manishhearth. I am implicitly assuming two bodies, that the link between the body and the head is free to float at its height. Of course it is not an accurate method but less violent :) than some other inaccurate ones on this thread, which also rely on this assumption. – anna v Jul 15 '13 at 10:50
  • This seems to violate the implicit principle that you are not allowed to cut your own head off. – jwg Jul 15 '13 at 12:01
2
  1. put on a tight-fitting helmet of known mass.
  2. attach a known spring between the helmet and a solid wall.
  3. have someone give the helmet+head a knock, and measure the frequency of vibration.

That gives the mass of head + helmet. Then subtract mass of helmet.

Mike Dunlavey
  • 17,055
2

What about MRI? I don't know the specifics, but a single google search reveals this link which suggests one can measure tissue density using it, and it's rather obvious one could also use MRI to reconstruct a 3D image of the head.

Alternatively, measure the relevant tissue densities of a cadaver then use MRI to evaluate the actual volume occupied by each tissue type which could give an estimate.

Nat
  • 4,640
2

Let us take the matrix of tensometers as mattress (about 450x150 points 5mm matrix distance). Let us put examine man/woman on this matrix. Then the total weight is sum of partial forces being measured by tensometers multiplied by gravity. Weight of head is the sum of forces measured by tensometers under head multiplied by gravity. To eliminate muscles force of neck, you may apply anesthetic for examined object.

The sophisticated procedure to eliminate forces of neck´s muscles will come soon.

1

A more accurate solution than the "relax your neck muscles" and similar ones:

Go to the morgue. Cut off the head of a recently deceased person with a similar body type. Measure the ratio of the weights of the head and body. Measure your weight.

Even more accurate: measure the density of the head you just cut off. Now measure the volume of your own head by immersing it into water. The volume of the head does not vary as much as of the body, where muscle, fat, etc. play a role. For better accuracy, cut off many heads for an average.

vsz
  • 1,069
0

Archimedes:

Get a bucket big enough to contain your whole body at the most shrinking position (like a baby in the womb).

Take a note for these following weight scale:

  1. Strip off all your clothes - fully naked.
  2. Weigh your naked body - Record it as $W_n$
  3. Weigh the bucket - Record it as $W_b$
  4. Put the bucket on the weigh scale
  5. Fill that bucket with water until flow over a little bit. That's how I define 'full'. Record = Record it $W_m$ (Bucket filled up with water).
  6. Get into the bucket and submerge your body but leave your head above the water surface - Record it as $W_t$
  7. Get out of the bucket very slowly so that you don't spill any more water and record the weight as $W_r$. Your Head Weight will be represented as these following formula:

    $$ W_h = W_n - (W_t-W_r)$$ Meaning that your head's weight is equal to your naked weight deducted by the weight of overflowed water that flowed out when you enter the bucket.

Bill N
  • 15,410
  • 3
  • 38
  • 60
0

The most precise result might be provided by the use of a reference head: This solution works if there is at disposal of science the weight and the volume (and possibly additional biometrical data, see below) of any (detached, fresh) head of reference.

Preliminarily, as an introduction, the following solution which works without reference head might not be exact:

You measure your volume and the volume of your head (by water displacement) and your weight, and you derive by pro rata the weight of your head. Problem: Your head may not have the same density as your body.

This problem may be resolved by the use of reference values of a foreign (detached, fresh) head. The pro rata result will be more exact, and it could be affined if additional biometric data are at hand (e.g. the proportion of specific parts of the head and parts of the head which are comparable with the remaining body such as muscles).

Moonraker
  • 3,135
  • Not all heads have the same composition. Some have thicker or denser bones, some have bigger front lobe, bigger nose etc. – user5402 Aug 27 '16 at 13:53
0

Ask someone to Weigh your head while you are asleep(or take some sleeping tablet) with the muscular tension almost zeroed, you can now measure it accurately by just laying on your head on the weighing machine while your whole body is lying flat on the floor at same height as the machine.

dushyanth
  • 1,293
0

Approximation method

Your head weighs 10 pounds.

For some set of circumstances (gravity, posture, sneezing status, hair length) your head will weigh exactly 10 pounds. Any more precise analysis will require more detailed inputs.

0

If you can find a way to calculate the density of your head by looking at the amount of the head that is - for example - bone, brain or space, and take the density of each of them, then you could get an average density for the whole head. Then simply measure the volume of the head by possibly submerging it and work out the mass.

Of course this isn't accurate in the slightest, but at least it's an answer.

Smi
  • 105
  • 4
Shardj
  • 121
  • 1
    or possibly get someone to push something with their head using the muscles in their neck then get them to move their head using what they feel is the same amount of force and hey presto, f/a=m – Shardj Jul 12 '13 at 14:56
0

Float free on water. Now lift your head clear of water. Measure displaced water. (Take account of water was displaced by head)

  • 1
    Similar solutions have been proposed and it was already established that you have to know the average density of "head matter" to apply Archimede's principle... – Neuneck Jul 25 '13 at 09:41
0

You should be able to do it by jumping off a table onto a spring scale. Simply film the jump with a high speed camera and look for the shockwave that moves through your body as you are landing and note when it reaches your neck. At the same time note the distance the spring has moved (call it point x). Then note how much further the spring moved afterwards to measure your full weight. Now drop a mass off the table that equals moving the spring to point x. Deduct that weight from your weight and you have hour head weight.

ps. you should be able to get rid of the camera and calculate the shockwave/compressionn wave speed using 9.9m per s per s and the height to your neck and height of the table.

Jitter
  • 2,421
-1

You can use the Archimedes principle by not assuming uniform body density. Instead of getting a measure of the density of human's body you can use a corpse body! Usually, the aspect ratio of the brain tissue to other human organs would not change significantly between different persons. So use Archimedes principle on the corpse relevant parts to calculate the difference in the density of the head and the rest of their body then generalize that for your case! Now use a bath hub to calculate the volume of your head and normalize it to your whole body volume. Calculate your head weight and we are done.

You can find them in any medical school

Looser
  • 191
