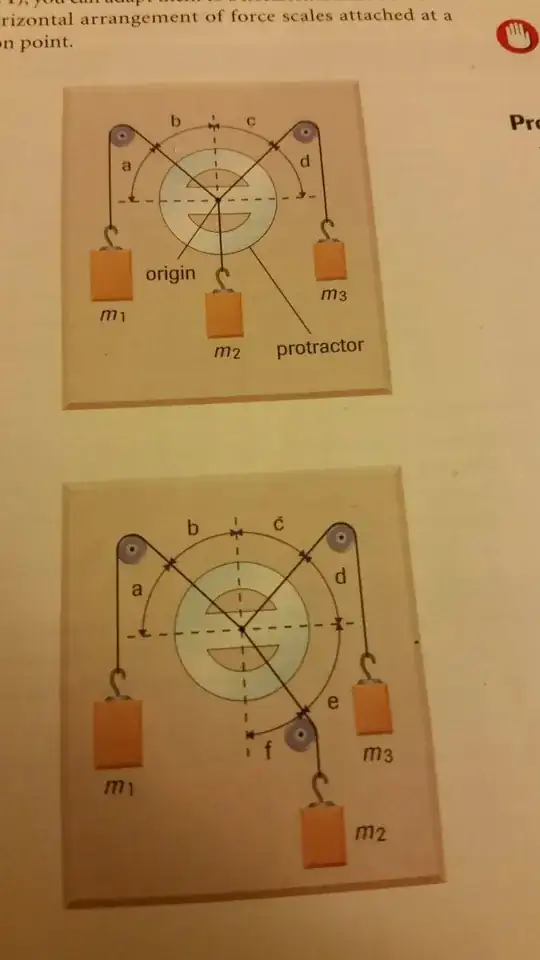

I had some trouble solving these. For the first one I assumed there wasn't a tension force on the 2nd mass, which gave me:

$$FT_1.\cos A = FT_2.\cos D$$ and $$FT_1\sin A + FT_2\sin D = F.g$$

Not sure how to approach 2nd problem.

Qmechanic
  • 201,751
Shadow King
  • 73
  • 1
  • 1
  • 6

2 Answers2

2

It sounds like you are supposed to assume the masses are all stationary, and you are to find the ratios between the masses that will do that. You know the tension in every rope, each one is mg where m is the mass the string is attached to. That tension is preserved all along the string, so bring it back to the point where all the strings attach. Then say the forces all add up to zero at that central point, and that will give you the constraint on the mass ratios. For the first one, it's obvious that you need m_1 = m_3 from symmetry, but then m_2 depends on the angle at the center.

Ken G
  • 3,220
  • How is the tension mg when the ropes are inclined at an angle? btw we did the experiment and Ik the masses, I just have to prove that its in static equilibrium. So I just need to know if my assumption is right for the first one and how would you approach the 2nd question – Shadow King Sep 18 '16 at 01:21
  • The ropes aren't inclined where they touch the masses, so that's where you want to figure the tension. The rope will support the same tension over its whole length. Your assumption sounds wrong for the first one-- how could a rope with zero tension hold up m_2 unless m_2 = 0? The way to do it is just what I said-- balance the forces at the center, given that T_1 = gm_1, T_2 = gm_2, and T_3 = gm_3. It will all end up a function of those angles. – Ken G Sep 18 '16 at 02:50
2

These questions are to do with the equilibrium of a point mass (knot) subjected to three forces provided by three masses and transmitted via pulleys and strings to the knot.

There are many methods of solving such problems but drawing a force diagram, which will be a triangle in this case, might help?
Because you have a static equilibrium situation the sum of the forces acting on the knot is zero so the vector addition of the three forces produces a triangle.

enter image description here

Solution can be obtained by resolving forces or by use of the sine rule and the cosine rule for the triangle of forces.

For your second problem you need to redraw the forces diagram which now will include the angle $f$.
